Steel
Sections

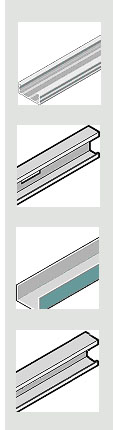

Sections are
galvanised, cold-formed, ‘cut to length’ profiles used for
non-load-bearing and load-bearing elemental building applications, where
speed of on-site installation and lightweight dry construction methods
are deciding factors.
STRUCTUAL
LOADBEARING STUDS+TRACK
C Studs
Thickness
|
Depth
|
Coating
|
Gauge
|
50KSI
|
Inches
|
(mm)
|
G90
|
20
|
√
|
3 1/2
|
89
|
√
|
20
|
√
|
5 1/2
|
140
|
√
|
22
|
√
|
3 1/2
|
89
|
√
|
22
|
√
|
5 1/2
|
140
|
√
|
16
|
√
|
10
|
250
|
√
|
16
|
√
|
14
|
355
|
√
|
18
|
√
|
10
|
250
|
√
|
18
|
√
|
14
|
355
|
√
|
Tracks
Thickness
|
Depth
|
Coating
|
Gauge
|
50KSI
|
Inches
|
(mm)
|
G90
|
20
|
√
|
3 1/2
|
89
|
√
|
22
|
√
|
5 1/2
|
140
|
√
|
16
|
√
|
10
|
250
|
√
|
16
|
√
|
14
|
355
|
√
|
18
|
√
|
10
|
250
|
√
|
18
|
√
|
14
|
355
|
√
|
NONLOADBEARING FRAMING STUDS + TRACK
C Studs
Thickness
|
Depth
|
Coating
|
Gauge
|
33KSI
|
Inches
|
(mm)
|
G90
|
25
|
√
|
3 1/2
|
89
|
√
|
25
|
√
|
5 1/2
|
140
|
√
|
Tracks
Thickness
|
Depth
|
Coating
|
Gauge
|
33KSI
|
Inches
|
(mm)
|
G90
|
25
|
√
|
3 1/2
|
89
|
√
|
25
|
√
|
5 1/2
|
140
|
√
|
|
